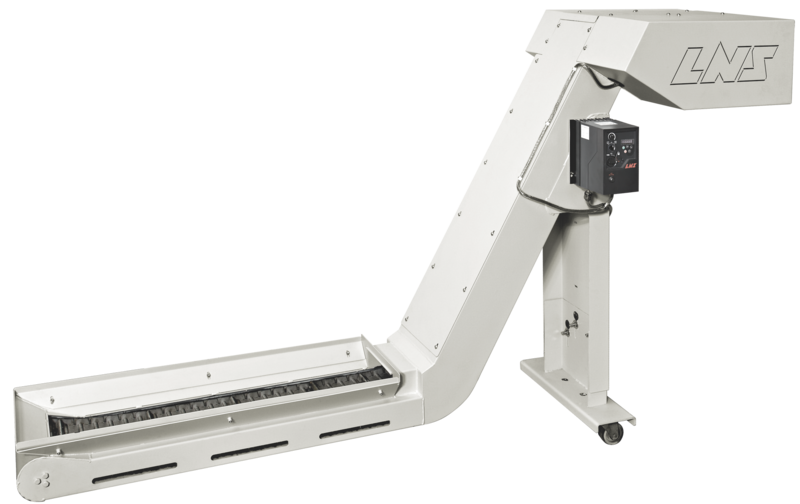

The Turbo Hinge Belt chip conveyor is a general purpose conveyor to remove large and stringy chips from CNC machining operations. Therefore, hinge plate Chip Management Systems are the rugged workhorse of chip removal and are general purpose conveyors that work with all types of chips. In addition, our line of hing belt Chip Management Systems meet the price and performance needs of today's value-oriented and high end CNC machine tools.

Features:

Variety of Belts

Belt pitch, component size, and belt strength all affect the performance of a conveyor and, as the machine tool power and size increases, the conveyor strength must also increase. Therefore, a variety of conveyor belts are available to suit specific CNC machining applications.

Durable Design

Reliable operation and long life are ensured through the use of hardened inserts used at the tail end of our hinge belt Chip Management Systems. The solid, hardened steel insert ensures smooth guiding of the belt in this critical area of the conveyor as well as wear resistance against the force exerted by heavy chip loads. As a result, the part is designed to last the duration of the conveyor's life but is interchangeable should maintenance be required.

Superior Operation

Turbo hinge belt Chip Management Systems are used in a variety of applications.  Therefore have to function with a vast array of chip types. Each hinge belt conveyor is equipped with different cleat types to aid the chip removal from the machine tool. Angled cleats act to remove fine chips from within the conveyor frame by following closely to the curve sections of the conveyor. Flat cleats act to remove the majority of chips up the incline section of the conveyor.  In addition, the serrated cleats act to grab and remove any bundles of stringy chips that would otherwise struggle to mount the incline section of the conveyor.
