Loading 2 mm to 4 mm diameter bars, can be difficult for many Bar Feeding Systems. However, not for the Express 220 S2+ automatic bar feeder. It reliably loads small diameter bar stock using exclusive loading assistance and bar selection systems. The Express 220 S2+ bar feeder offers the best loading capacity / length ratio in its category. Above all, this unit's high-end components and manufacturing quality make it ideal to drastically increase CNC machine tool productivity. The Express 220 S2+ bar feeder diameter range is 2 mm to 26 mm, for fixed or sliding headstock CNC lathes.

Features:

Barstock Loading Capacity

At a depth of 240 mm, the enclosed loading ramp allows a large number of bars to be prepared. An optional 100 mm internal extension for bars from 4 to 12 mm provides up to 340 mm capacity of extended production runs.

New HMI

The Express 220 S2+ has a user-friendly user-machine interface (HMI). The HMI improves the interaction between the bar feeder and the operator by displaying information visually via pictograms and images.

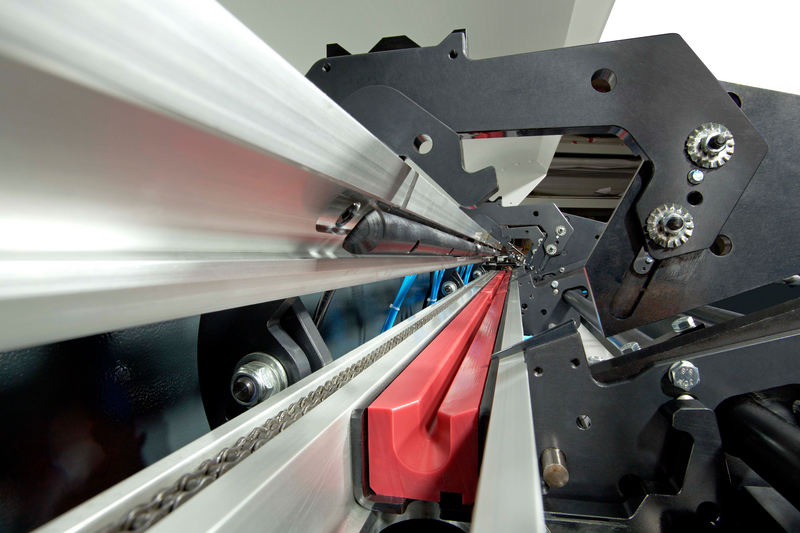

Guiding 2mm Bars

The channels are completely closed by a special cover which prevents the bars from slipping out of their guide. The cover opens when the pusher and its drive system arrive.
