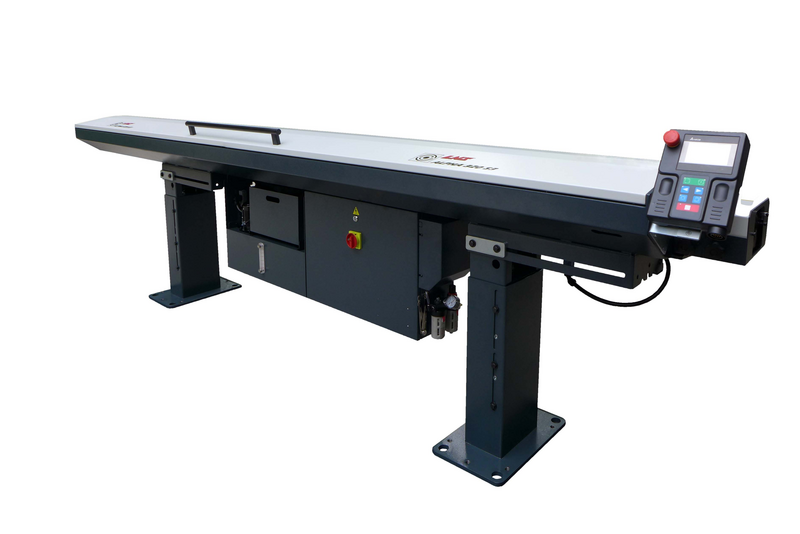

The Alpha 320 S3 - automatic and efficient bar feeder

LNS Alpha 320 S3 is the LNS entry-level solution to load small diameter barstocks for fixed or sliding headstock machines. The easily adjustable loading fingers and manual front rest ensure optimum bar guidance and high performance. The Alpha 320 S3 is a highly productive and economical automatic bar feeding system for round bar stock diameters from 3 - 23 mm.

Features

Front rest

Pneumatically actuated, the oil-flooded, two-position front rest with V-shaped guiding elements dampens the residual vibrations of the rotating bar material.

Mobile remote control with touchscreen

The remote control with a colour, operator-friendly touchscreen (HMI) allows an easy setting and interface via menu-controlled icons, the bar feeder and the lathe.

Simple and rapid conversion

Bar diameters on the side load rack of the bar feeder are changed over by a centrally controlled, manual setting using an adjusting lever.
